B6X04A /00; Philips Belgium (ID = 377330) Radio

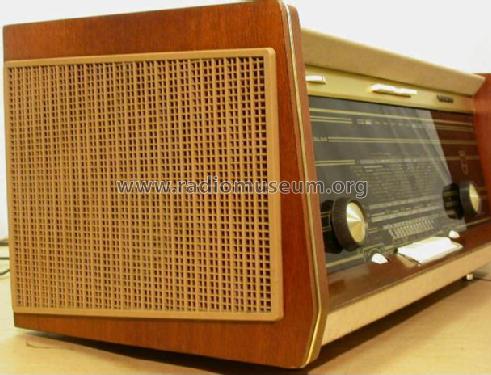

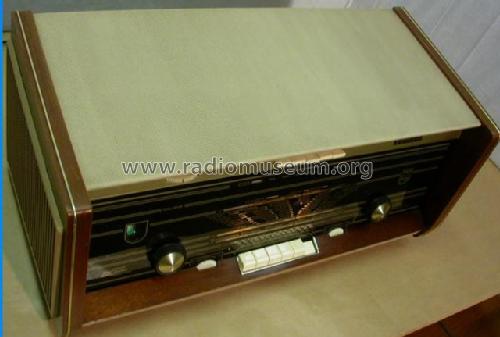

Philips Belgium: B6X04A /00 [Radio] ID = 377330 624x304

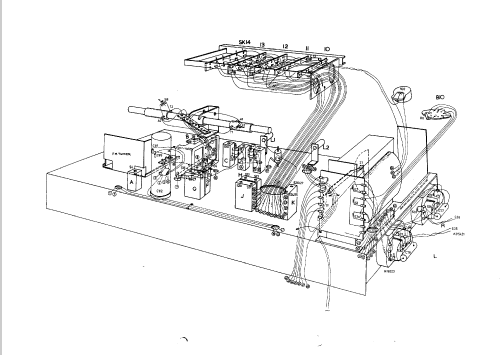

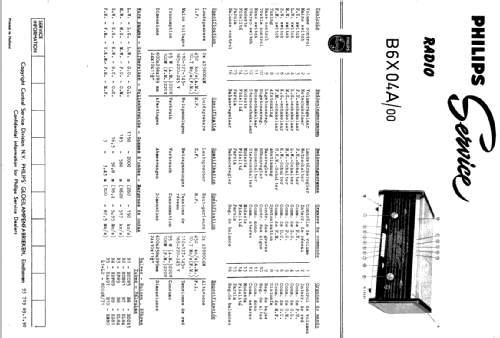

Select picture or schematic to display from thumbnails on the right and click for download.

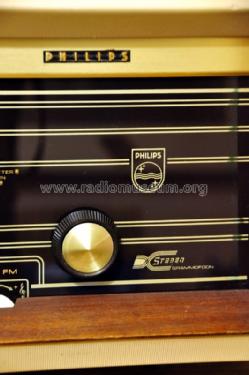

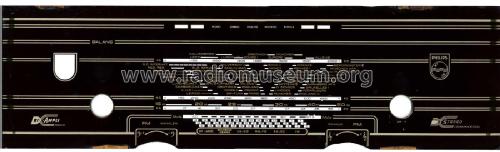

For model B6X04A /00, Philips Belgium (Belgien):
aus ebay, mit Erlaubnis des Verkäufers radioseller124

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 18 cm = 7.1 inch
Power out 12 W (unknown quality)
from Radiomuseum.org Model: B6X04A /00 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 289 x 258 mm / 23.6 x 11.4 x 10.2 inch
Notes
  • This radio has 3 tone control preselections.
  • The tuner part is mono, the output amplifier is stereo.
  • When playing radio (any wave band), one output channel plays full range, the other has a low pass filter and plays not as loud. This is intended by Philips; don't mistake this behavior as an amplifier problem. Both channels only play full range when playing PU or tape and the stereo button is engaged.
  • Both tone control potentiometers will only work when none of the tone control preselections are engaged.
  • Lautsprecher 800 Ohm über Trafo; keine eisenlose Endstufe!
  • Loudspeakers are model AD3800AM (800Ω); no transformerless output.
  • 2 extra output connectors for external speakers, both with a full range and a high pass output.
