• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29771

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

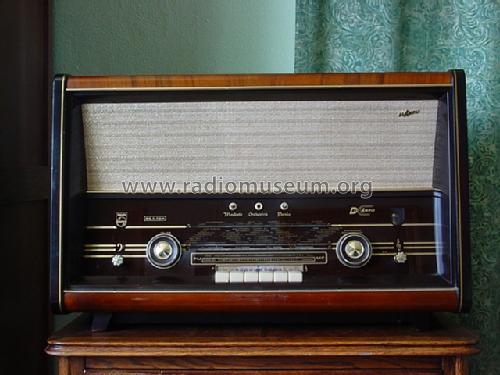

  • Model: B6X72A - Philips; Eindhoven tubes
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 620 x 390 x 262 mm / 24.4 x 15.4 x 10.3 inch
  • Notes
  • AM radio with built-in ferroceptor:
    • LW: 150 - 260 kHz.
    • BC: 519 - 1620 kHz.
    • SW: 5,8 - 12,3 MHz.
    FM radio with dipole antenna input: 87,5 - 100 MHz.

    Amplifier: SRPP1 type..
    Oval loudspeakers: AD3690A (800 Ohm) and AD3460A (800 Ohm).

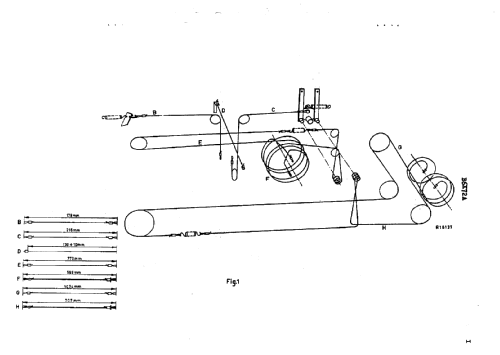

    Dial lamps: 8024N (6.3V / 300mA, bajonet).

    1shunt regulated push-pull amplifier
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
