BI510A

BI510A; Philips Italy; (ID = 584286) Radio

BI510A; Philips Italy; (ID = 2206432) Radio
BI510A; Philips Italy; (ID = 626473) Radio BI510A; Philips Italy; (ID = 383824) Radio
BI510A; Philips Italy; (ID = 626475) Radio BI510A; Philips Italy; (ID = 383825) Radio

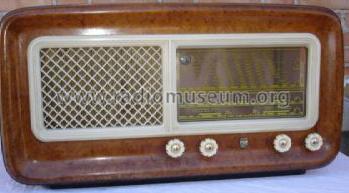

BI510A; Philips Italy; (ID = 207458) Radio BI510A; Philips Italy; (ID = 383823) Radio
BI510A; Philips Italy; (ID = 626471) Radio BI510A; Philips Italy; (ID = 626474) Radio
BI510A; Philips Italy; (ID = 626476) Radio BI510A; Philips Italy; (ID = 1591904) Radio
Use red slider bar for more.
BI510A; Philips Italy; (ID = 626473) Radio
Philips Italy;: BI510A [Radio] ID = 626473 857x573
Select picture or schematic to display from thumbnails on the right and click for download.
For model BI510A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EF41 EBC41 EL41 EM4 AZ41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 170; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: BI510A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 605 x 323 x 210 mm / 23.8 x 12.7 x 8.3 inch
Notes

Philips BI510A
Onde Medie, Onde Corte ed Onde Corte allargate (25 ÷ 30 m).
Mobile con frontale impiallacciato con radica ad "occhio di pernice".

Emblema PHILIPS retroilluminato.

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) D.E. Ravalico, Il Radiolibro, 13° edizione, 1952, Hoepli

Model page created by Alessandro De Poi. See "Data change" for further contributors.
