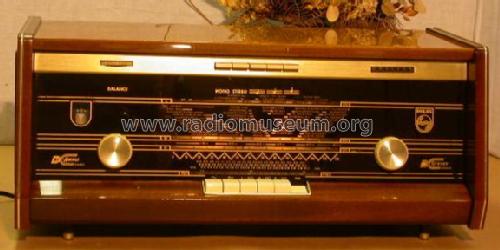

Bi-Ampli B5X23A /74

Bi-Ampli B5X23A /74; Philips Belgium (ID = 2027288) Radio Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342167) Radio
Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342164) Radio Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342168) Radio

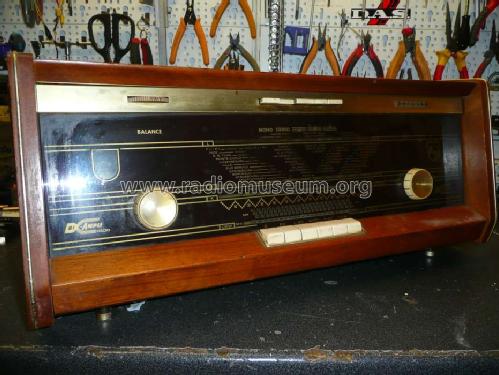

Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342165) Radio Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342166) Radio
Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342169) Radio Bi-Ampli B5X23A /74; Philips Belgium (ID = 1342170) Radio
Bi-Ampli B5X23A /74; Philips Belgium (ID = 2259307) Radio Bi-Ampli B5X23A /74; Philips Belgium (ID = 1670377) Radio
Use red slider bar for more.
Bi-Ampli B5X23A /74; Philips Belgium (ID = 2027288) Radio
Philips Belgium: Bi-Ampli B5X23A /74 [Radio] ID = 2027288 1200x732
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bi-Ampli B5X23A /74, Philips Belgium (Belgien):
Gerät steht im Museo della Radio e della Fotografia

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1962/1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Bi-Ampli B5X23A /74 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 550 x 240 x 220 mm / 21.7 x 9.4 x 8.7 inch
Notes Philips Bi-Ampli Radio Stereo Gramm B5X23A/74;
German/French labeled scale, different coverage than other suffix /xx versions:
FM up to 108 MHz,
SW: ~5.9 - 18.2 MHz,
AM: ~517 - 1.622 KHz,
LW: ~150 - 260 KHz, balance control, mono/stereo buttons, sound equalizer, DIN and Philips type banana terminals for phono and tape & extern speakers.
Collectors' prices

Model page created by a member from A. See "Data change" for further contributors.
