Bolero B4A73A

Bolero B4A73A; Philips - Österreich (ID = 784342) Radio

Bolero B4A73A; Philips - Österreich (ID = 784343) Radio

Bolero B4A73A; Philips - Österreich (ID = 691352) Radio

Bolero B4A73A; Philips - Österreich (ID = 691353) Radio

Bolero B4A73A; Philips - Österreich (ID = 691354) Radio
Bolero B4A73A; Philips - Österreich (ID = 2094193) Radio Bolero B4A73A; Philips - Österreich (ID = 2268327) Radio
Bolero B4A73A; Philips - Österreich (ID = 2577378) Radio Bolero B4A73A; Philips - Österreich (ID = 211590) Radio

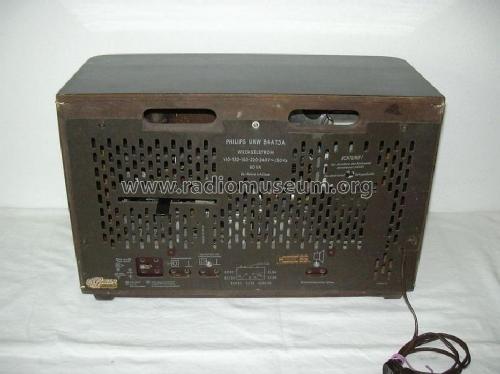

Bolero B4A73A; Philips - Österreich (ID = 346853) Radio Bolero B4A73A; Philips - Österreich (ID = 346852) Radio

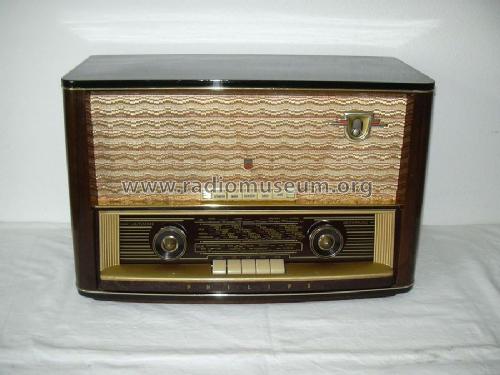

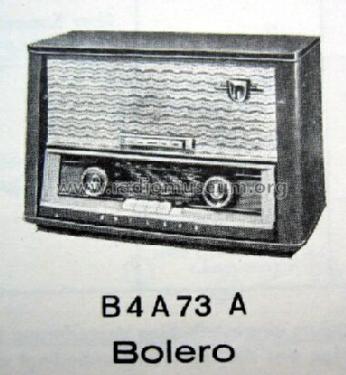

Bolero B4A73A; Philips - Österreich (ID = 69180) Radio Bolero B4A73A; Philips - Österreich (ID = 346850) Radio
Use red slider bar for more.

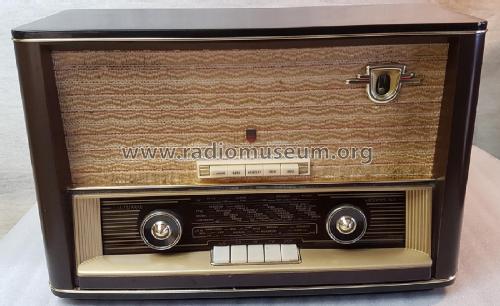

Bolero B4A73A; Philips - Österreich (ID = 2094193) Radio
Philips - Österreich: Bolero B4A73A [Radio] ID = 2094193 1400x858
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bolero B4A73A, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM81 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Bolero B4A73A - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 360 x 225 mm / 19.3 x 14.2 x 8.9 inch
Notes Parallelgerät zum Horny Attaché W467A/1.
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Price in first year of sale 1'885.00 öS
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
