BS351AF

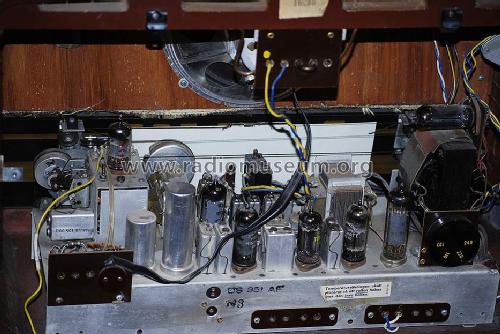

BS351AF; Philips, Svenska AB, (ID = 676609) Radio BS351AF; Philips, Svenska AB, (ID = 677764) Radio

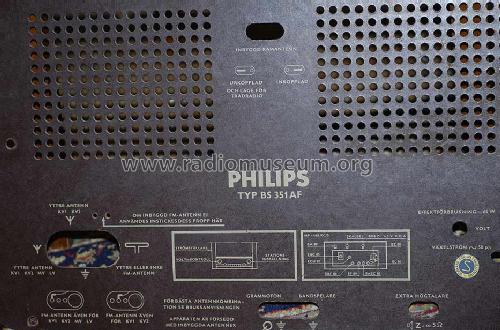

BS351AF; Philips, Svenska AB, (ID = 677765) Radio BS351AF; Philips, Svenska AB, (ID = 677763) Radio
Use red slider bar for more.
BS351AF; Philips, Svenska AB, (ID = 676609) Radio
Philips, Svenska AB,: BS351AF [Radio] ID = 676609 933x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS351AF, Philips, Svenska AB, Stockholm:
By courtesy of guest Vitaly V. Brusnikin.

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: BS351AF - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 525 x 345 x 218 mm / 20.7 x 13.6 x 8.6 inch
Notes Chassis also used in tablemodel BS 451 AF and radiogram FS 653 AF with minor changes. Wave bands are FM 87,5 - 100 MHz, SW1 19,2 - 50,8 m, SW2 73,5 - 188 m, broadcast (MV) 185 - 570 m and long waves (LV) 690 - 2000 m.
Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)
External source of data Vitaly V. Brusnikin

Model page created by Ernst Erb. See "Data change" for further contributors.
