• Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 103485

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 10850/468 kHz
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 15 cm = 5.9 inch
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

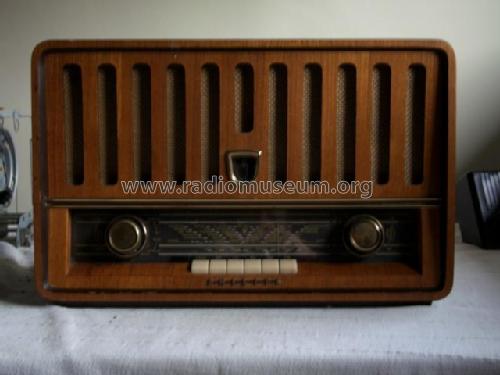

  • Model: BS371A - Philips, Svenska AB, Stockholm
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 465 x 292 x 205 mm / 18.3 x 11.5 x 8.1 inch
  • Notes
  • Built-in frame antenna for LW/MW.
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Leon Ouziel Canals. See "Data change" for further contributors.
