BS471U

BS471U; Philips, Svenska AB, (ID = 759719) Radio

BS471U; Philips, Svenska AB, (ID = 759946) Radio

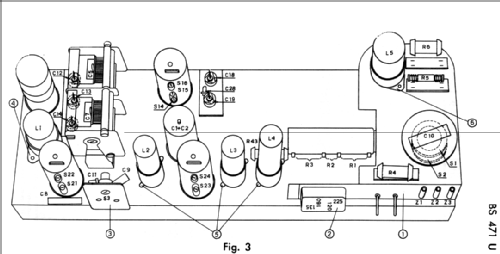

BS471U; Philips, Svenska AB, (ID = 759948) Radio
BS471U; Philips, Svenska AB, (ID = 759379) Radio
Use red slider bar for more.
BS471U; Philips, Svenska AB, (ID = 759379) Radio
Philips, Svenska AB,: BS471U [Radio] ID = 759379 416x333
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS471U, Philips, Svenska AB, Stockholm:
Philips service document

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH21 UAF41 UAF41 UL41 UY1N
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 120-225 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BS471U - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 500 x 325 x 230 mm / 19.7 x 12.8 x 9.1 inch
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Lennart Nilsson. See "Data change" for further contributors.
