BS561A

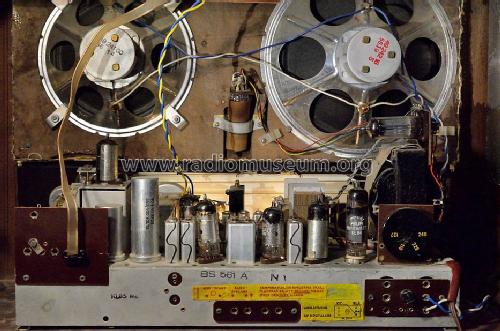

BS561A; Philips, Svenska AB, (ID = 1656019) Radio BS561A; Philips, Svenska AB, (ID = 1656016) Radio

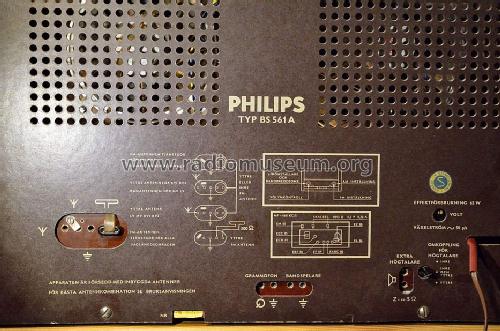

BS561A; Philips, Svenska AB, (ID = 1656017) Radio BS561A; Philips, Svenska AB, (ID = 1656018) Radio
BS561A; Philips, Svenska AB, (ID = 1656021) Radio BS561A; Philips, Svenska AB, (ID = 1656025) Radio
Use red slider bar for more.

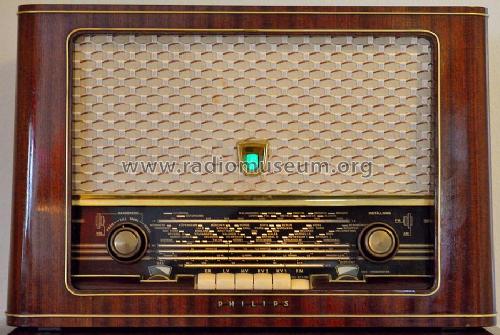

BS561A; Philips, Svenska AB, (ID = 1656019) Radio
Philips, Svenska AB,: BS561A [Radio] ID = 1656019 933x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS561A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1956 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: BS561A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 570 x 380 x 220 mm / 22.4 x 15 x 8.7 inch

Model page created by Kent Johansson. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 188 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
