BS562A

BS562A; Philips, Svenska AB, (ID = 236594) Radio

BS562A; Philips, Svenska AB, (ID = 236595) Radio
BS562A; Philips, Svenska AB, (ID = 1254279) Radio
Use red slider bar for more.
BS562A; Philips, Svenska AB, (ID = 1254279) Radio

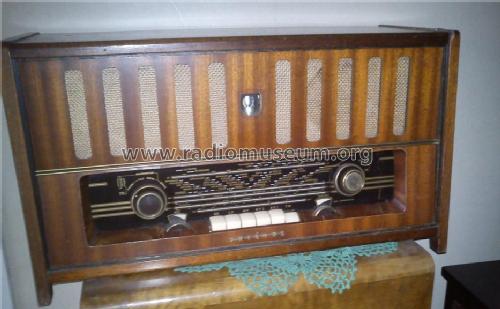

Philips, Svenska AB,: BS562A [Radio] ID = 1254279 933x578
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS562A, Philips, Svenska AB, Stockholm:
tradera.com VK:goonforme #157092178

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF80 EF89 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: BS562A - Philips, Svenska AB, Stockholm
Material Wooden case
Price in first year of sale 555.00 SEK
Collectors' prices
Source of data - - Data from my own collection

Model page created by Peter Olausson. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 189 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
