BS571A

BS571A; Philips, Svenska AB, (ID = 759720) Radio

BS571A; Philips, Svenska AB, (ID = 759949) Radio

BS571A; Philips, Svenska AB, (ID = 759951) Radio
BS571A; Philips, Svenska AB, (ID = 759380) Radio
Use red slider bar for more.
BS571A; Philips, Svenska AB, (ID = 759380) Radio
Philips, Svenska AB,: BS571A [Radio] ID = 759380 500x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS571A, Philips, Svenska AB, Stockholm:

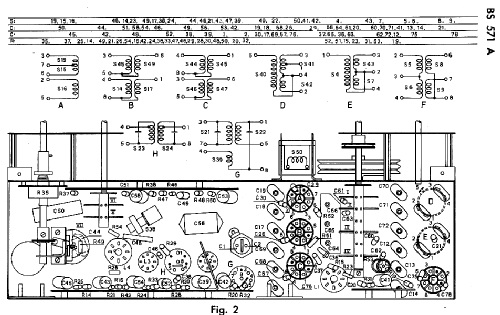

Philips service document

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EAF41 EAF41 EBL21 EM4 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BS571A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 355 x 250 mm / 20.9 x 14 x 9.8 inch
Notes SW-bands: 16-19 m, 25-31 m, 40-50 m, 20-42 m. Variable IF-bandwidth.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Literature/Schematics (1) - - Manufacturers Literature

Model page created by Lennart Nilsson. See "Data change" for further contributors.
