BX453A; Philips Belgium (ID = 2253530) Radio
Philips Belgium: BX453A [Radio] ID = 2253530 990x717
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX453A, Philips Belgium (Belgien):
Bild des Radios aus dem Restaurant Porta Faxeira in Santiago de Compostela / Spanien.

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner

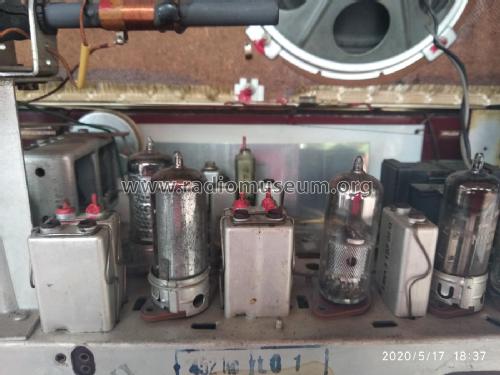

Valves / Tubes 8: ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: BX453A - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 343 x 219 mm / 20.1 x 13.5 x 8.6 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 262 kHz.
  • BC: 522 - 1610 kHz.
  • SW: 5,8 - 12,3 MHz.
FM radio with dipole antenna input: 87,5 - 100 MHz.

Amplifier: 1 x 6 W in 5 Ohm (loudspeaker AD3700M).
Dial lamp: 8024N (6.3V / 300mA, bajonet).
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 278.00 HFL
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
