BX453A /90

BX453A /90; Philips Belgium (ID = 2561689) Radio

BX453A /90; Philips Belgium (ID = 2561691) Radio
BX453A /90; Philips Belgium (ID = 2509981) Radio BX453A /90; Philips Belgium (ID = 2509984) Radio
BX453A /90; Philips Belgium (ID = 2509983) Radio BX453A /90; Philips Belgium (ID = 2509982) Radio
BX453A /90; Philips Belgium (ID = 2509985) Radio
Use red slider bar for more.

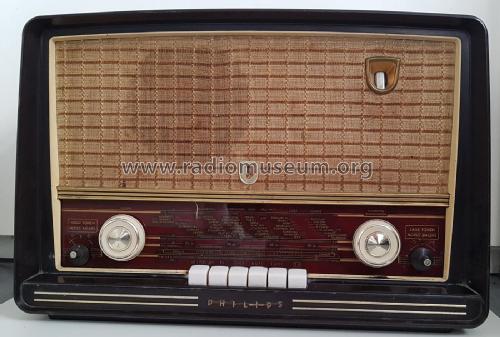

BX453A /90; Philips Belgium (ID = 2509981) Radio
Philips Belgium: BX453A /90 [Radio] ID = 2509981 1400x944
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX453A /90, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EF85 EM80 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BX453A /90 - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 343 x 219 mm / 20.1 x 13.5 x 8.6 inch

Model page created by Pascal Ribbens. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 471 models, 449 with images and 276 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
