• Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 198766

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
  • Power out
  • 4.5 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

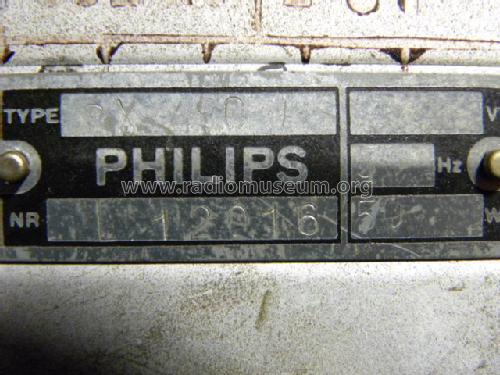

  • Model: BX490A - Philips Belgium Belgien
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 460 x 300 x 240 mm / 18.1 x 11.8 x 9.4 inch
  • Notes
  • Philips BX490;
    Apparecchio con mobile in bachelite e con circuitazione supereterodina in grado di ricevere le onde lunghe, medie e corte.
    1) OL: 715-2000 m (420-150 kHz);
    2) OM: 185-580 m (1600-520 kHz);
    3) OC 1: 32-50,5 m;
    4) OC 2: 21,5-32 m;
    5) OC 3: 17-26 m;
    6) OC 4: 13,5-20 m.

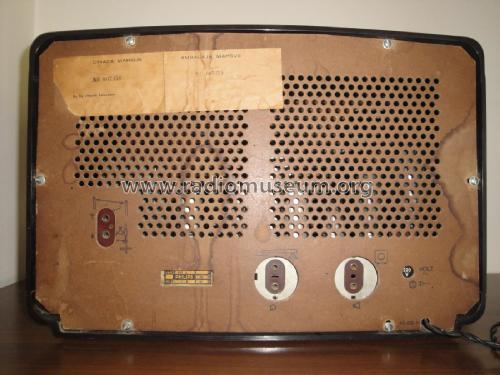

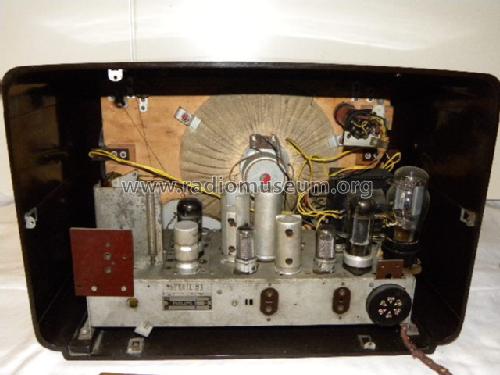

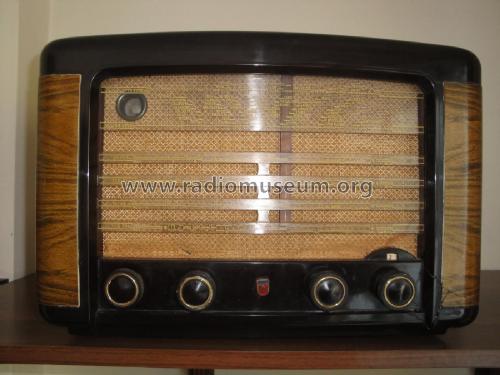

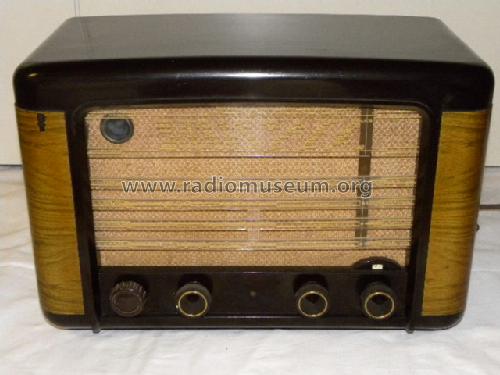

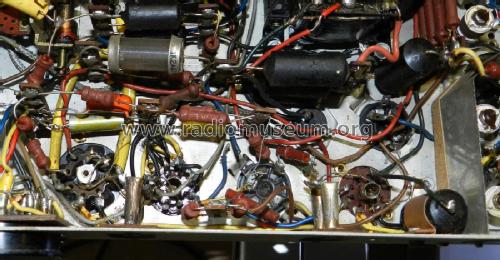

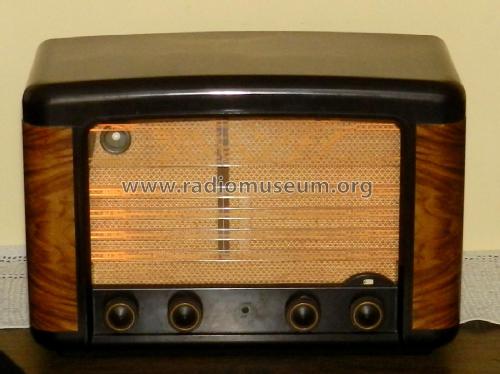

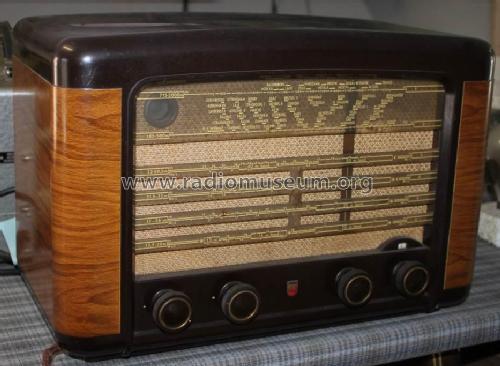

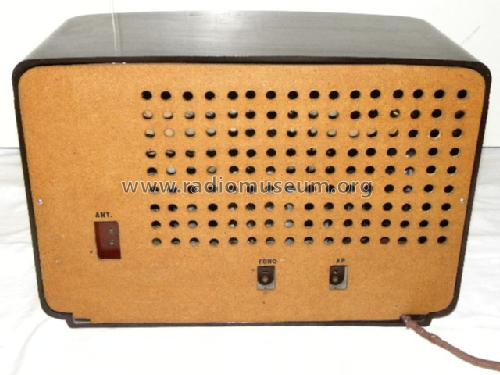

    Da sinistra verso destra troviamo il controllo toni, estraendo il quale si attiva l’ingresso fono, segue il controllo volume con l’interruttore di rete, la manopola di sintonia dotata di volano e infine il commutatore per il cambio gamme d’onda a sei posizioni. L’ascolto avviene tramite due altoparlanti disposti coassialmente: uno per le frequenze alte e uno per frequenze basse. Abbastanza complessa la meccanica della regolazione di sintonia ove il condensatore variabile e l’indicatore sulla scala parlante sono mossi da un sistema separato di funicelle che viene però azionato contemporaneamente dall’apposita manopola. E’ curioso il fatto che questo ricevitore impiega 6 valvole: (ECH 21, EBL 21, 2 x EAF 42, EM34 e AZ1) appartenenti a 4 serie diverse (Tipo P o Vaschetta o Octal europeo; Octal, Locktal e Rimlock). Posteriormente al mobile si trova la presa antenna, l’ingresso fono e l’uscita per un altoparlante supplementare.


    This radio can accomodate EAF41 as well as EAF42: see wiring diagram.

    AM radio for external antenna:
    • LW: 150 - 420 kHz.
    • BC: 517 - 1620 kHz.
    • SW1: 5,94 - 9,38 MHz.
    • SW2: 9,37 - 13,95 MHz.
    • SW3: 11,54 - 17,65 MHz.
    • SW4: 17,65 - 26,8 MHz.
    Loudspeaker: 9696-05 (5Ω, with soundwave diffuser).
    Dial lamp: 2x 8045D (E10, 6.3V/320mA).
  • Net weight (2.2 lb = 1 kg)
  • 9.6 kg / 21 lb 2.3 oz (21.145 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Carlo La Perna. See "Data change" for further contributors.
