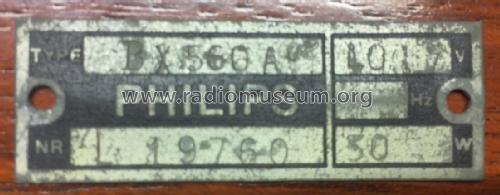

BX560A /02; Philips Belgium (ID = 1641642) Radio

BX560A /02; Philips Belgium (ID = 1641643) Radio

BX560A /02; Philips Belgium (ID = 1641644) Radio

BX560A /02; Philips Belgium (ID = 1641645) Radio
BX560A /02; Philips Belgium (ID = 965565) Radio BX560A /02; Philips Belgium (ID = 965566) Radio
BX560A /02; Philips Belgium (ID = 965567) Radio
Use red slider bar for more.
BX560A /02; Philips Belgium (ID = 965565) Radio
Philips Belgium: BX560A /02 [Radio] ID = 965565 761x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX560A /02, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1946 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF22 ECH21 ECH21 EBL21 EM4 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Ø 19 cm = 7.5 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: BX560A /02 - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 505 x 325 x 230 mm / 19.9 x 12.8 x 9.1 inch
Notes
Basically the same as BX560A except for the LF tone control circuitry.

AM radio for external antenna:
  • LW: 150 - 417 kHz.
  • BC: 536 - 1622 kHz.
  • SW: 5,9 - 18,2 MHz.
Loudspeaker: 9636-05 or 9696-05 (both are 5Ω and have a soundwave diffuser).

Dial lamps: 2x 8045D (E10, 6.3V/320mA).

Literature/Schematics (1) -- Original-techn. papers.

Model page created by a member from B. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 323 models, 300 with images and 161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
