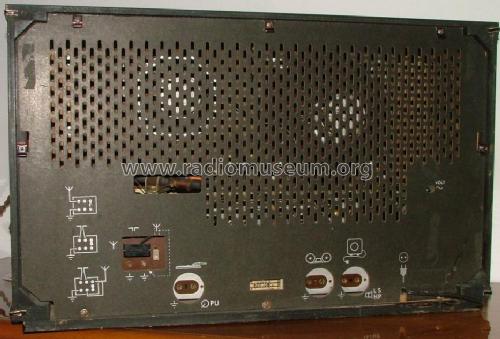

For model BX653A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner

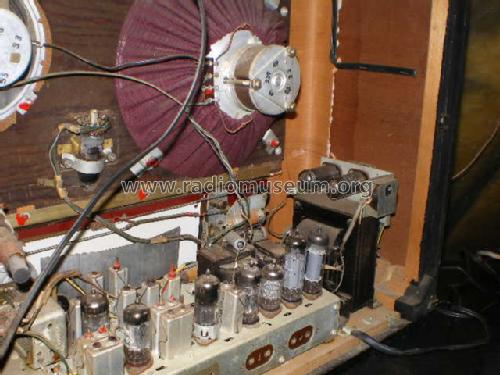

Valves / Tubes 11: ECC85 ECH81 EF89 EF85 EM80 EABC80 ECC83 EL84 EL84 EZ80 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 160; 180; 200; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out 6 W (unknown quality)
from Radiomuseum.org Model: BX653A - Philips; Eindhoven tubes
Material Wooden case

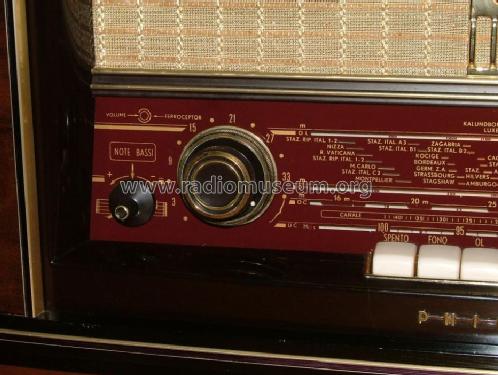

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 676 x 415 x 230 mm / 26.6 x 16.3 x 9.1 inch
Notes Bi-Ampli principle: 2 amplifier channels, 2 loudspeakers Philips 9754 (21 cm) and Philips 9766M (12 cm)
Price in first year of sale 438.00 HFL
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
