Capella 604 Stereo B6D04A

Philips Radios - Deutschland

  • Year
  • 1960–1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 23830
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Capella 604 Stereo B6D04A - Philips Radios - Deutschland

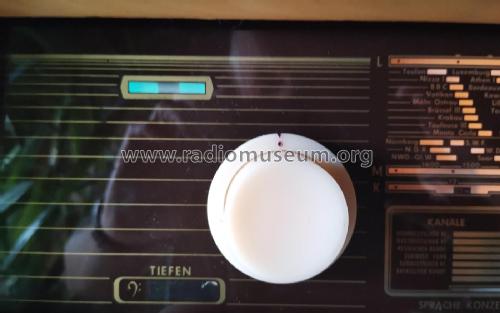

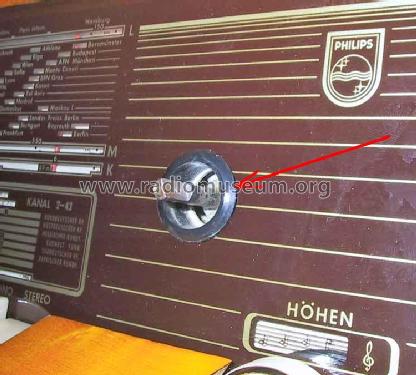

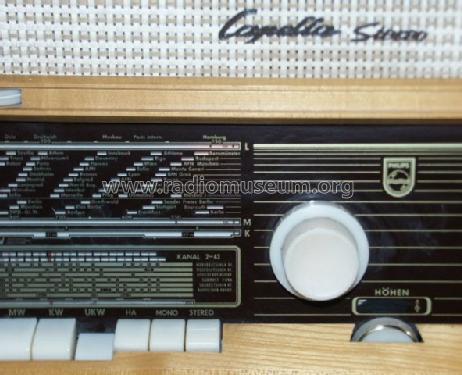

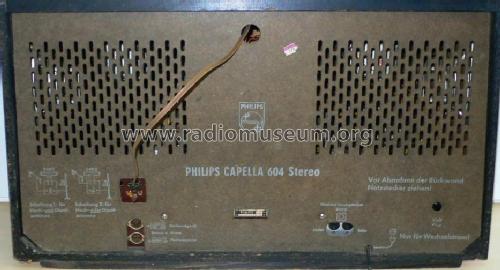

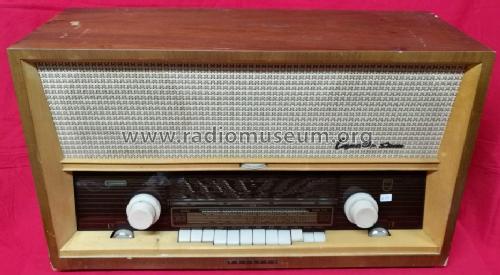

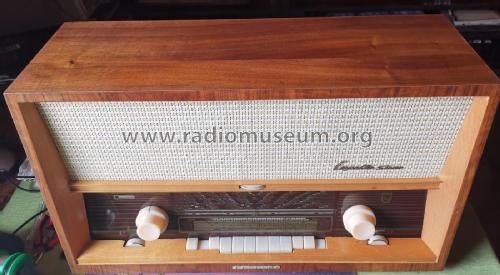

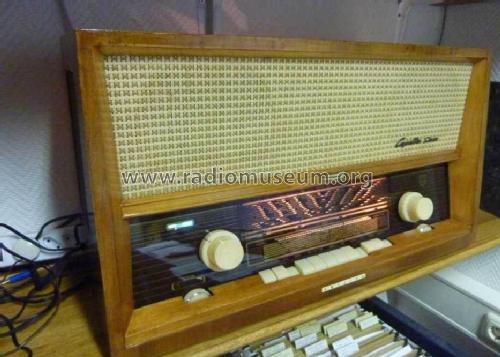

  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 670 x 385 x 255 mm / 26.4 x 15.2 x 10 inch
  • Notes
  • Dreh- und abschaltbare Ferritantenne.
    Stereo-NF-Verstärker mit zwei transformatorlosen Gegentakt-Endstufen je 4 W.
    Impedanz der Basslautsprecher 800 Ohm.

  • Net weight (2.2 lb = 1 kg)
  • 13.9 kg / 30 lb 9.9 oz (30.617 lb)
  • Price in first year of sale
  • 498.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Capella 604 Stereo is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips Radios -: Capella 604 Stereo B6D04A

Threads: 1 | Posts: 4

Hallo,

hab mal eine Frage,

in dem hier abgebildeten Modell steht : Impedanz der Basslautsprecher 800 Ohm .

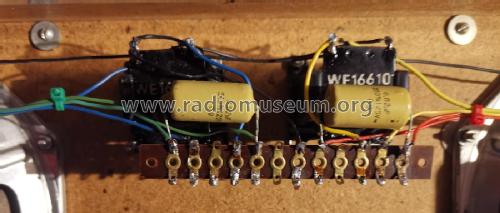

auf den Bildern sieht man jedoch zwischen den Lautsprechern (und im Schaltplan) 2 Übertrager. Haben denn nun die Lautsprecher 800Ohm ? Für was sind denn dann die Übertrager ?

Vielen Dank im Voraus

Gruss



Frank Winter, 11.Jan.20

Weitere Posts (4) zu diesem Thema.
