Reverbeo B7X14A /00 /01; Philips; Eindhoven (ID = 2513194) Radio
Philips; Eindhoven: Reverbeo B7X14A /00 /01 [Radio] ID = 2513194 1400x711

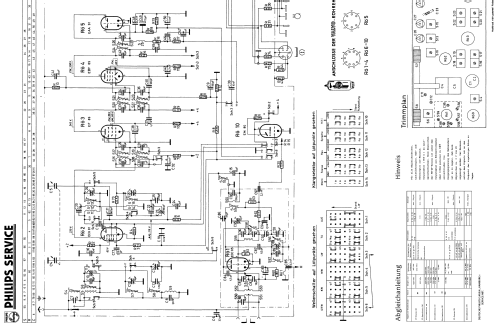

Select picture or schematic to display from thumbnails on the right and click for download.
For model Reverbeo B7X14A /00 /01, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81
Semiconductors (the count is only for transistors) 1: OC71
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Reverbeo B7X14A /00 /01 - Philips; Eindhoven tubes
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 712 x 265 x 292 mm / 28 x 10.4 x 11.5 inch
Notes

Loudspeakers: AD3800AM (800 Ohm). Bi-amplifier, stereo only for pick-up and tape. Dial lamp 2x 8024N (6,3V/0,3A).

Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Antonio Martins-Pais. See "Data change" for further contributors.



All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Here you find 4992 models, 4180 with images and 3332 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips; Eindhoven: Reverbeo B7X14A /00 /01
Threads: 1 | Posts: 3
Hits: 2374     Replies: 2
philips: B7X14A/00 ; Capella-Reverbeo
David Schulman
23.Jan.09
  1

Hello to all, this is my first post to these forums and I would be grateful to any assistance. I have a model B7X14A/04, however, the model here is the /00 model. Does anyone have any information on what the major differences are between the two. They do look different, but other than that, I really don't know what the differences are between the two models. I haven't been able to locate any information on the internet for the model I have either. A link to a photo of my set is below. Thanks for any input.

David, WD0ERU

i49.photobucket.com/albums/f296/dschulma/philips2.jpg

Bernhard Nagel
23.Jan.09
  2

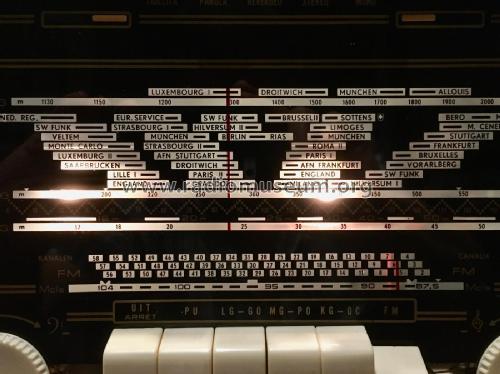

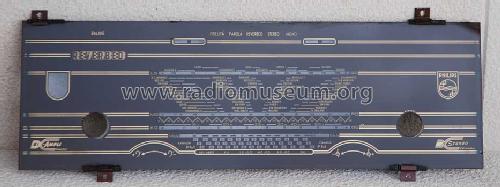

Please compare the dials from both B7X14A/00 and your ../04 model. 00 is an european version, FM reception is limited to 100 MHz and the MW (BC) range shows various station names of (mostly european) broadcasting transmitters. Your pictured model is an export version for the north american market: FM reaches to 108 MHz, and all AM ranges has no station names. Maybe also markings like CD appears above the BC kHz markings. CD stands for civil defense, this was important in the times of cold war...

Please make a new model suggestion since your Philips B7X14A/04 isn't listed in the RMorg database.

Thanks and best regards,

Bernhard

David Schulman
23.Jan.09
  3

Bernhard, thank you for the information. I will be making a new model suggestion in the next couple of days.

David
