Concerto BDK673A

Concerto BDK673A; Philips Radio A/S; K (ID = 710555) Radio Concerto BDK673A; Philips Radio A/S; K (ID = 710557) Radio

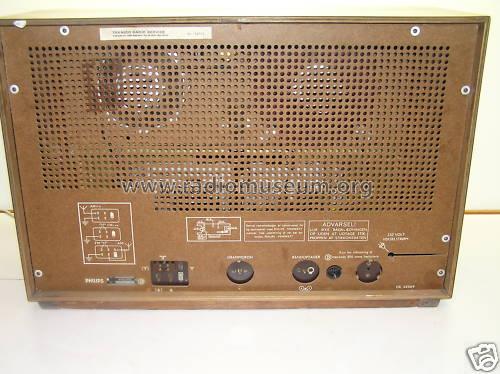

Concerto BDK673A; Philips Radio A/S; K (ID = 710558) Radio Concerto BDK673A; Philips Radio A/S; K (ID = 710556) Radio
Use red slider bar for more.
Concerto BDK673A; Philips Radio A/S; K (ID = 710555) Radio
Philips Radio A/S; K: Concerto BDK673A [Radio] ID = 710555 500x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concerto BDK673A, Philips Radio A/S; København:
Quelle mir nicht mehr bekannt.

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM80 EL86 EL86 EZ81
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Concerto BDK673A - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 660 x 440 x 250 mm / 26 x 17.3 x 9.8 inch
Notes Philips Denmark Concerto BDK673A;
Rotary ferrite rod antenna. Transformerless push-pull audio amplifier.

Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
