Bi-Ampli F6X61A/05
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187878

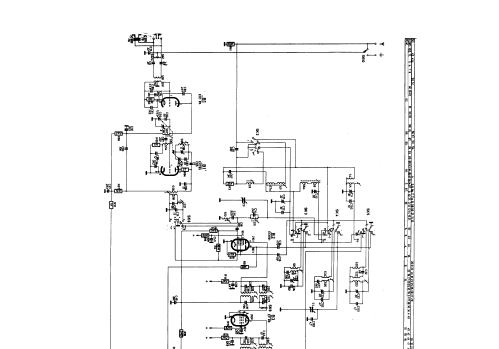

original schematic
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Bi-Ampli F6X61A/05 - Philips; Eindhoven tubes
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 938 x 760 x 385 mm / 36.9 x 29.9 x 15.2 inch
- Notes
- The Philps model F6X61A with loudspeakers: AD3700M (5 Ohm) + AD3800 (5 Ohm) is a "Bi-Ampli".
Disc-changer: AG1003-75.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
