- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30043
by courtesy of the owner
by courtesy of the owner
by courtesy of the owner
by courtesy of the owner
Close up of tuning screen.

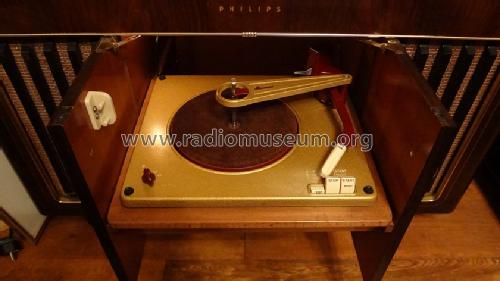

Record changer view.
Pas encore restauré
avant restauration
Pendant la restauration
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-245 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: F6X62A - Philips; Eindhoven tubes
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 920 x 790 x 385 mm / 36.2 x 31.1 x 15.2 inch
- Notes
- Plattenwechsler AG1003
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
- Other Models
-
Here you find 5233 models, 4365 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: F6X62A
Threads: 1 | Posts: 1
For reference only:
The chassis used in this model is almost exactly the same as that used in the B6X63A Bi-Ampli receiver.
There are some small differences in the treble control circuit:
1n8 -> 2n2 capacitors. This does not really affect anything audible in my experience.
Martin Rimmer
Martin Rimmer, 31.Mar.14
