• Country
• Denmark

• Manufacturer / Brand
• Philips Radio A/S; København

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315192

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EBF80 EF85 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

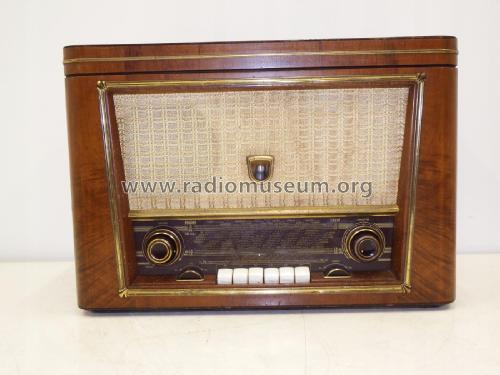

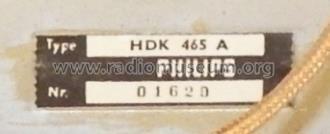

• Model: Fagot HDK465A - Philips Radio A/S; København

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 550 x 310 x 380 mm / 21.7 x 12.2 x 15 inch

• Notes

• Built-in record player chassis AG2004, same chassis as in BDK453A.

• Author
• Model page created by Tomasz Szczesniak. See "Data change" for further contributors.
