Forum 53 21TA210U /10 Ch= S4; Philips - Österreich (ID = 140258) Television

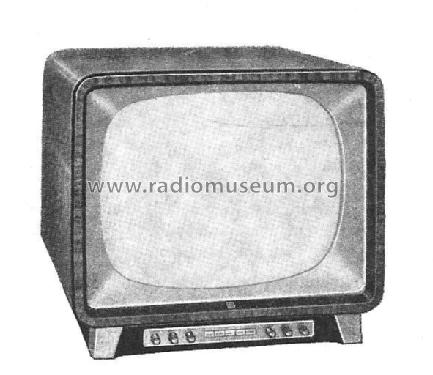

Philips - Österreich: Forum 53 21TA210U /10 Ch= S4 [Television] ID = 140258 592x512
Select picture or schematic to display from thumbnails on the right and click for download.
For model Forum 53 21TA210U /10 Ch= S4, Philips - Österreich

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: PCC88 PCF80 EF80 EF80 EF80 EF80 EF80 PCL82 PCL84 ECC81 PCF80 PCF80 ECH81 PCL82 PL81 PY81 DY87 PY82 PY82 AW53-80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Forum 53 21TA210U /10 Ch= S4 - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 530 x 470 mm / 24 x 20.9 x 18.5 inch
Notes

Ausführung mit 5 Tasten und Abstimmanzeige "Bildmagnet".
Bei gedrückter Taste "Abstimmanzeige" dunkler, senkrechter Balken im Bild. Breite abhängig von der optimalen Senderabstimmung.

Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

Parallelgerät zum Horny WT2118U/10.

Price in first year of sale 7'450.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
