For model H3S93AF, Philips, Svenska AB, Stockholm:

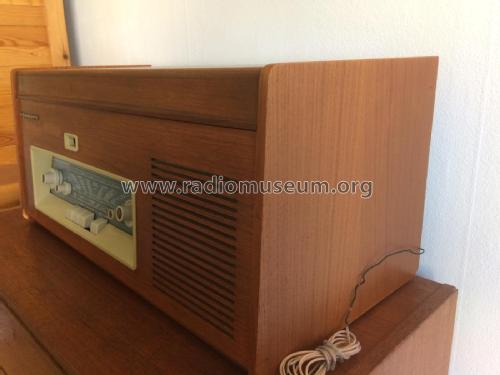

H3S9AF radio gramophone, powered on

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL86
Semiconductors (the count is only for transistors) B155C120
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10850 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (unknown quality)
from Radiomuseum.org Model: H3S93AF - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 593 x 256 x 232 mm / 23.3 x 10.1 x 9.1 inch
Mentioned in -- Original-techn. papers.

Model page created by Ian Dublon. See "Data change" for further contributors.
