- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30143
Rückwand des ungeöffneten Gerätes.
Bodenplatte abgeschraubt.
Das Typenschild mit einem Hinweisschild !

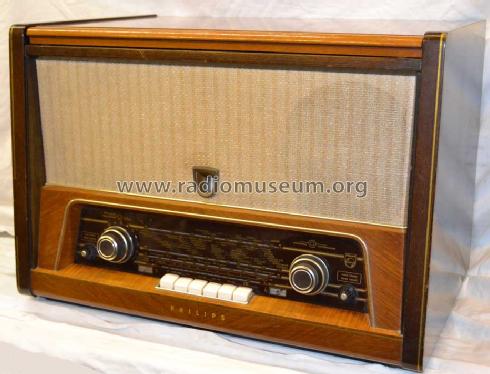

Philips H5X63A

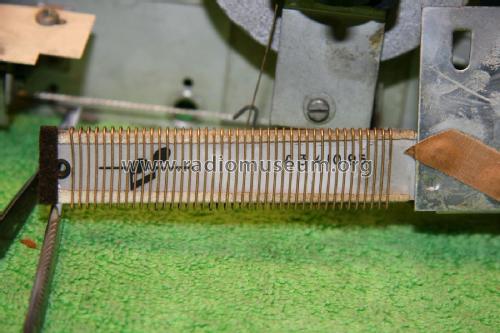

Philips H5X63A inside details
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 452/10,7 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: H5X63A - Philips; Eindhoven tubes
- Dimensions (WHD)
- 604 x 413 x 395 mm / 23.8 x 16.3 x 15.6 inch
- Notes
- Pl.Wechsler: AG1003-75
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
