HE-423-A

HE-423-A; Philips Ibérica, (ID = 1684042) Radio

HE-423-A; Philips Ibérica, (ID = 2412389) Radio
HE-423-A; Philips Ibérica, (ID = 1129213) Radio HE-423-A; Philips Ibérica, (ID = 752713) Radio
HE-423-A; Philips Ibérica, (ID = 1129211) Radio HE-423-A; Philips Ibérica, (ID = 1129212) Radio
HE-423-A; Philips Ibérica, (ID = 1129215) Radio HE-423-A; Philips Ibérica, (ID = 1129216) Radio
HE-423-A; Philips Ibérica, (ID = 1131729) Radio HE-423-A; Philips Ibérica, (ID = 1131730) Radio
HE-423-A; Philips Ibérica, (ID = 1131731) Radio HE-423-A; Philips Ibérica, (ID = 1978504) Radio
Use red slider bar for more.
HE-423-A; Philips Ibérica, (ID = 1129213) Radio
Philips Ibérica,: HE-423-A [Radio] ID = 1129213 358x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model HE-423-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (not changer)

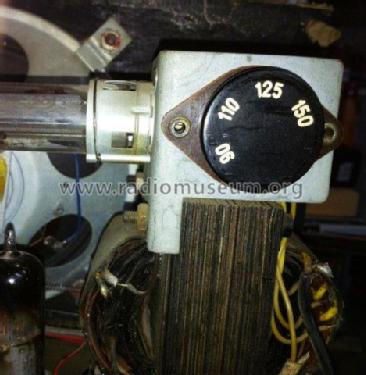

Power type and voltage Alternating Current supply (AC) / 110; 125; 150; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: HE-423-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 320 x 380 mm / 17.3 x 12.6 x 15 inch

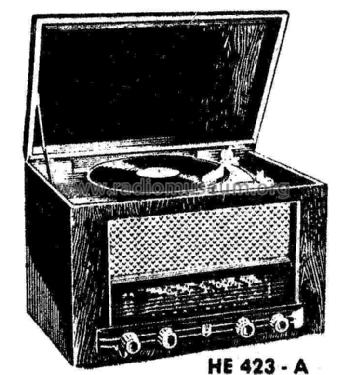

Literature/Schematics (1) Anuncio La Vanguardia Española 01/10/1952

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
