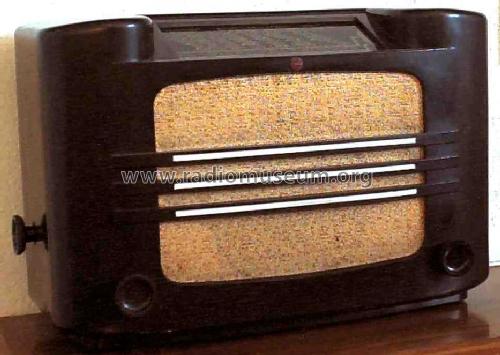

Philips - Schweiz: Menuetto 461A [Radio] ID = 610525 700x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model Menuetto 461A mit KW, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Menuetto 461A [mit KW] - Philips - Schweiz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 320 x 190 mm / 18.9 x 12.6 x 7.5 inch
Notes

Dial lamp: 8042D (4V/0,5A).
See also the same Philips 461A-04 without SW, SFr. 250.--

Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)
Price in first year of sale 250.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Mentioned in Les Radio PHILIPS de collection
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (3) Philips Folder for 1938.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
