Merkur Tisch 575 FD575A

Philips Radios - Deutschland

  • Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21743
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • Semiconductors
  • OA85
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110/220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Merkur Tisch 575 FD575A - Philips Radios - Deutschland
  • Dimensions (WHD)
  • 700 x 650 x 500 mm / 27.6 x 25.6 x 19.7 inch
  • Notes
  • Zwei ovalförmige Breitbandlautsprecher und zwei statische Hochtöner.

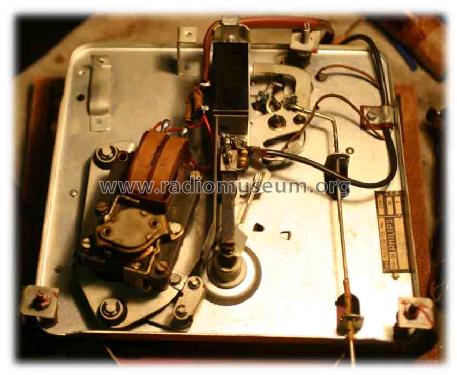

    Technische Ausführung wie Merkur Tisch 574, jedoch mit eingebautem Phono-Automaten Mignon-Chassis AG2013.

  • Net weight (2.2 lb = 1 kg)
  • 20 kg / 44 lb 0.8 oz (44.053 lb)
  • Price in first year of sale
  • 558.00 DM
  • External source of data
  • Erb
