Opera BDK 573A

Opera BDK 573A; Philips Radio A/S; K (ID = 1735258) Radio
Opera BDK 573A; Philips Radio A/S; K (ID = 1481336) Radio Opera BDK 573A; Philips Radio A/S; K (ID = 1481343) Radio

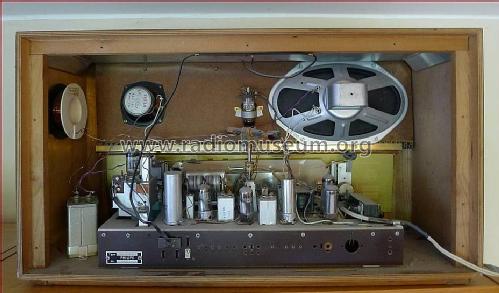

Opera BDK 573A; Philips Radio A/S; K (ID = 1481405) Radio Opera BDK 573A; Philips Radio A/S; K (ID = 1481406) Radio
Use red slider bar for more.
Opera BDK 573A; Philips Radio A/S; K (ID = 1481336) Radio
Philips Radio A/S; K: Opera BDK 573A [Radio] ID = 1481336 627x396
Select picture or schematic to display from thumbnails on the right and click for download.
For model Opera BDK 573A, Philips Radio A/S; København

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Opera BDK 573A - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 640 x 350 x 250 mm / 25.2 x 13.8 x 9.8 inch
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
