Ouvertüre 58 B6A73A

• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73336

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes

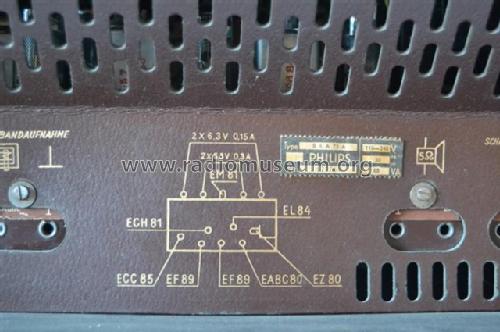

• ECC85 ECH81 EF89 EF89 EM80 or EM81 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands

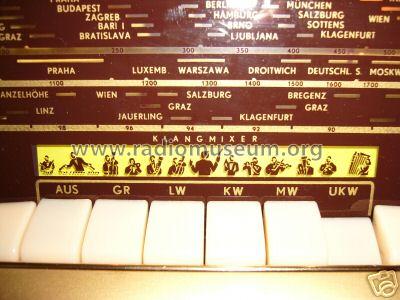

• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ouvertüre 58 B6A73A - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 340 x 270 mm / 24.8 x 13.4 x 10.6 inch

• Notes

• 2 Lautsprecher: Tiefton-oval 18 x 23 cm; Hoch-Mittelton 10 x 15 cm.

  Siehe auch: Hornyphon Rex 57 W676A Gleicher Röhrensatz jedoch 3 Lautsprecher

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
