Planophone 2 HI572/A

Planophone 2 HI572/A; Philips Italy; (ID = 667501) Radio

Planophone 2 HI572/A; Philips Italy; (ID = 667503) Radio

Planophone 2 HI572/A; Philips Italy; (ID = 667502) Radio

Planophone 2 HI572/A; Philips Italy; (ID = 667609) Radio
Planophone 2 HI572/A; Philips Italy; (ID = 198348) Radio Planophone 2 HI572/A; Philips Italy; (ID = 198352) Radio
Planophone 2 HI572/A; Philips Italy; (ID = 198363) Radio Planophone 2 HI572/A; Philips Italy; (ID = 2037864) Radio
Planophone 2 HI572/A; Philips Italy; (ID = 2037865) Radio
Use red slider bar for more.
Planophone 2 HI572/A; Philips Italy; (ID = 198348) Radio
Philips Italy;: Planophone 2 HI572/A [Radio] ID = 198348 800x462
Select picture or schematic to display from thumbnails on the right and click for download.
For model Planophone 2 HI572/A, Philips Italy; Milano (MI):
Philips Planophone2

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner

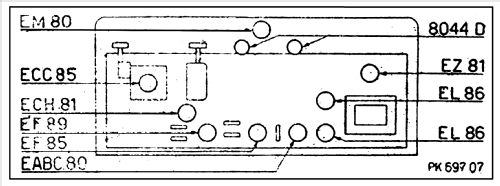

Valves / Tubes 9: ECC85 ECH81 EF89 EF85 EM80 EABC80 EL86 EL86 EZ81
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt
Loudspeaker 3 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Planophone 2 HI572/A - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 690 x 310 x 390 mm / 27.2 x 12.2 x 15.4 inch
Notes

Amplificatore BF BIAMPLI stadio finale separato per bassi ed acuti. Dial lamps: 2x 8044D.

  • Stadio finale senza trasformatore di uscita;
  • Altoparlanti laterali Biconici ad alta impedenza (400 ohm)  tipo 9768BM da 16 cm.;
  • Giradischi a 4 velocità tipo AG2012;
  • Gamma acustica riprodotta (entro +/- 3dB) da 60 a 8000 Hz.
Net weight (2.2 lb = 1 kg) 16.4 kg / 36 lb 2 oz (36.123 lb)
Price in first year of sale 115'000.00 ITL
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Catalogo ANIE (Catalogo ANIE n° 4 1958/59)
Literature/Schematics (1) -- Schematic

Model page created by Federico Mantovani. See "Data change" for further contributors.



All listed radios etc. from Philips Italy; Milano (MI)
Here you find 370 models, 306 with images and 229 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Italy;: Planophone 2 HI572/A
Threads: 1 | Posts: 1
Hits: 1524     Replies: 0
philips: HI572/A ; Planophone 2
Giuseppe Lucenti
17.Dec.11
  1

Ho riavvolto il trasformatore di alimentazione, e quindi contato le spire del suo originale.

Questi sono i dati per poterlo riprodurre.

Primario 220 v

Avvolgere 750 spire di rame da 0,60 mm

Secondario tensione anodica 300 + 300 v

Avvolgere 2050 spire di rame da 0,17mm, effettuare la presa intermedia a 1025 spire

Secondario filamenti 6,3 v

Avvolgere 23 spire di rame da 1,30mm
