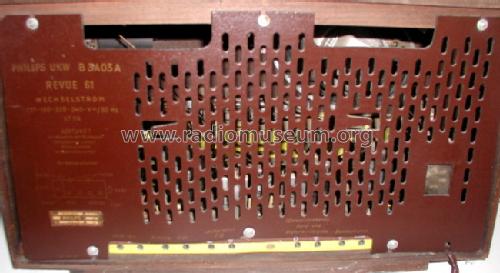

Revue 61 B3A03A; Philips - Österreich (ID = 667907) Radio Revue 61 B3A03A; Philips - Österreich (ID = 69092) Radio
Revue 61 B3A03A; Philips - Österreich (ID = 307465) Radio Revue 61 B3A03A; Philips - Österreich (ID = 381225) Radio
Revue 61 B3A03A; Philips - Österreich (ID = 667905) Radio Revue 61 B3A03A; Philips - Österreich (ID = 1182138) Radio
Revue 61 B3A03A; Philips - Österreich (ID = 1362427) Radio
Use red slider bar for more.
Revue 61 B3A03A; Philips - Österreich (ID = 551073) Radio
Philips - Österreich: Revue 61 B3A03A [Radio] ID = 551073 933x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model Revue 61 B3A03A, Philips - Österreich:
Philips Revue 61, B3A03A

Country:  Austria
Manufacturer / Brand:  Philips - Österreich
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 150: 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Revue 61 B3A03A - Philips - Österreich
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 260 x 200 mm / 17.3 x 10.2 x 7.9 inch
Notes

Parallelgerät zum Hornyphon Attaché 61 W360A.

Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
