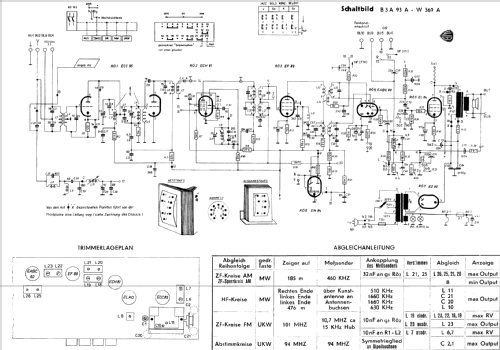

Select picture or schematic to display from thumbnails on the right and click for download.

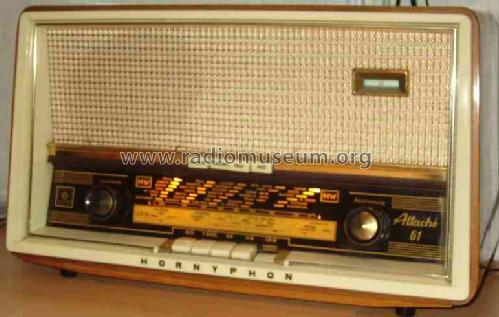

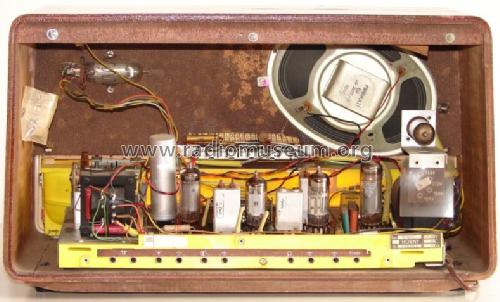

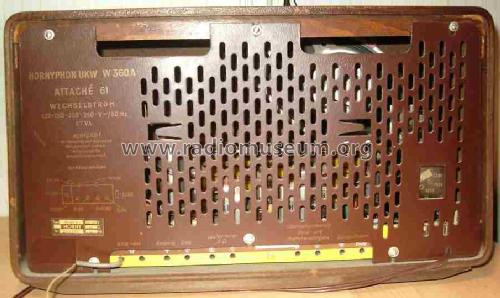

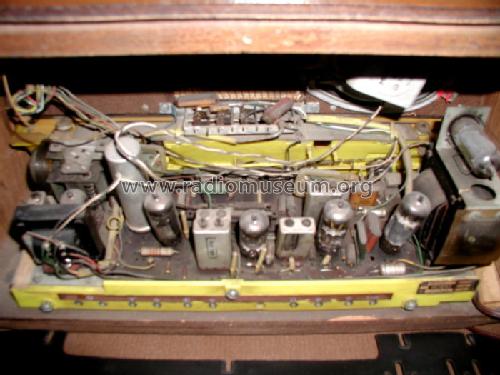

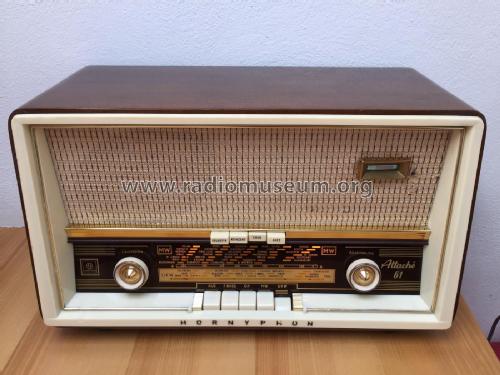

For model Attaché 61 W360A, Horny (Hornyphon); Wien

Country:  Austria
Manufacturer / Brand:  Horny (Hornyphon); Wien
Brand

Hornyphon
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details

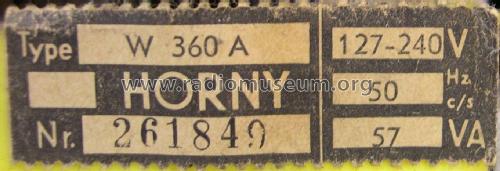

Power type and voltage Alternating Current supply (AC) / 127; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Attaché 61 W360A - Horny Hornyphon; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 440 x 260 x 200 mm / 17.3 x 10.2 x 7.9 inch
Notes

keine Tonblende; dafür 4 Klangregister-Tasten

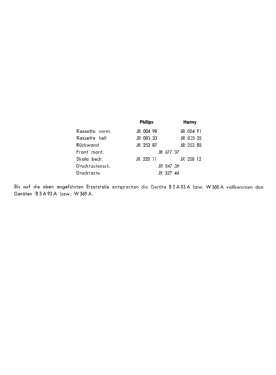

Parallelgerät zur Philips Revue 61 B3A03A

Siehe auch: Hornyphon Belcanto 61 WH360A - Dieses Radio mit Plattenspieler

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.



All listed radios etc. from Horny (Hornyphon); Wien
Here you find 867 models, 774 with images and 581 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Horny Hornyphon;: Attaché 61 W360A
Threads: 1 | Posts: 3
Hits: 1840     Replies: 2
hornyphon: W360A; Attaché 61
Joseph Koebel
29.Sep.11
  1

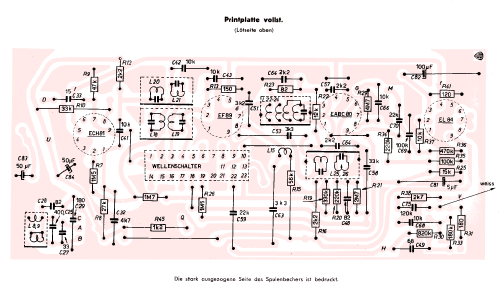

Does anyone know the value of the fixed capacitors inside the IF transformers? My example of this radio is suffering from "silver mica disease" and I'd like to replace. The values of those small capacitors are not called out on the schematic, but are present across coils L18 L19 L20 L21 L23 L25 L26.

Thank you.

Wolfgang Bauer
01.Oct.11
  2


Hallo Mr. Koebel,

I can not believe that these capacitors have become defective.
Please take a picture of the defective capacitors, then we will see more.

Regards WB.

Joseph Koebel
14.Oct.11
  3

Mr. Bauer,

Please accept my apology. You are correct. While investigating, it turns out the solder traces on the circuit board around the IF transformers were cracked and I was able to repair them. This fixed the problem. I spoke too soon jumping to silver-mica disease.

Sincerely,

J.W. Koebel
