Scala B5N83A

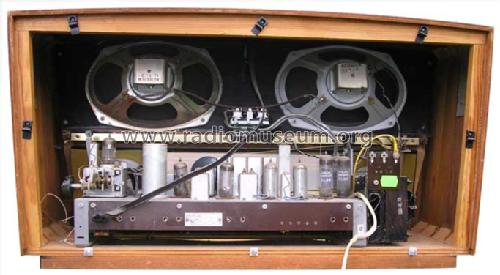

Scala B5N83A; Philips Norway Norsk (ID = 403445) Radio Scala B5N83A; Philips Norway Norsk (ID = 403446) Radio
Use red slider bar for more.
Scala B5N83A; Philips Norway Norsk (ID = 403445) Radio
Philips Norway Norsk: Scala B5N83A [Radio] ID = 403445 719x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Scala B5N83A, Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo

Country:  Norway
Manufacturer / Brand:  Philips Norway (Norsk A/S Philips - A/S Radio Industri); Oslo
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 EF85 EM80 EABC80 EL84 EL84 EZ80
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 130; 150; 230 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Scala B5N83A - Philips Norway Norsk A/S
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 700 x 370 x 260 mm / 27.6 x 14.6 x 10.2 inch
Price in first year of sale 885.00 NKr
Source of data - - Data from my own collection

Model page created by Ernst Rykkje. See "Data change" for further contributors.
