• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 243657

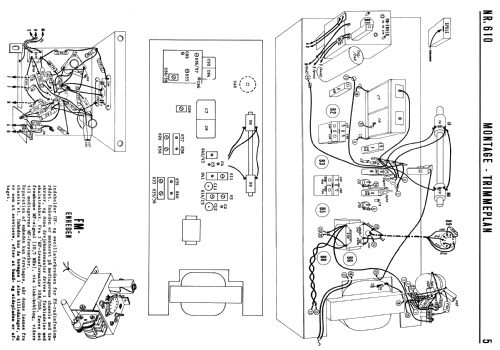

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sonate BDK483A - Philips Radio A/S; København
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 565 x 324 x 245 mm / 22.2 x 12.8 x 9.6 inch
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
