• Year
  • 1958
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 235140

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 22
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 38900/33400 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 21-TE-210-A-03 - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 602 x 495 x 459 mm / 23.7 x 19.5 x 18.1 inch
  • Notes
  • TRC: 21"

    Selector rotativo de 12 canales pero únicamente con las bobinas correspondientes a los canales E2, E3, E4 y E5 de VHF.

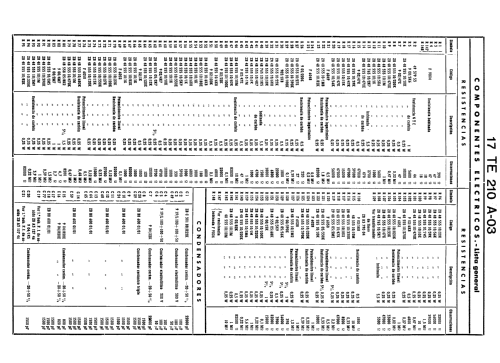

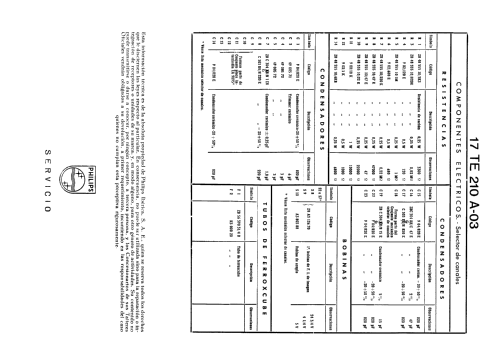

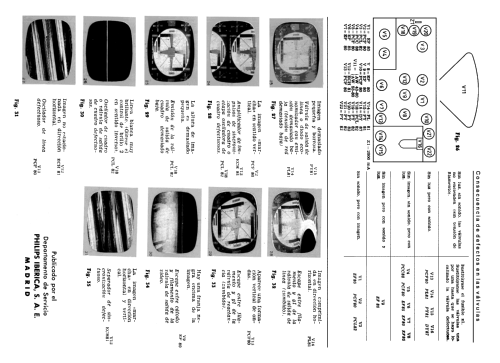

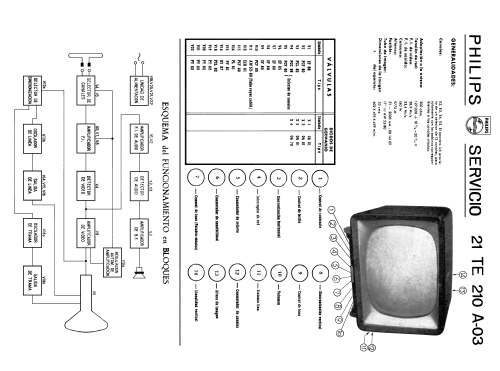

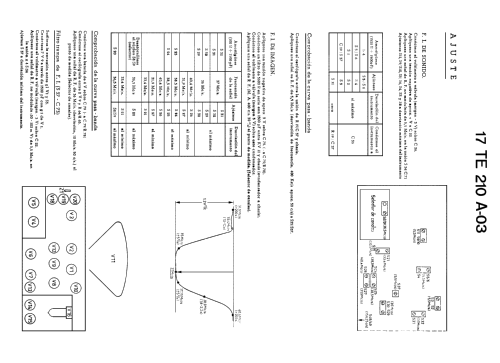

  • Literature/Schematics (2)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
