• Country
• Germany

• Manufacturer / Brand
• Kuba (Kuba-Imperial), G. Kubetschek; Wolfenbüttel

• Year
• 1962/1963

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 83981

• • alternative name: Imperial Kuba

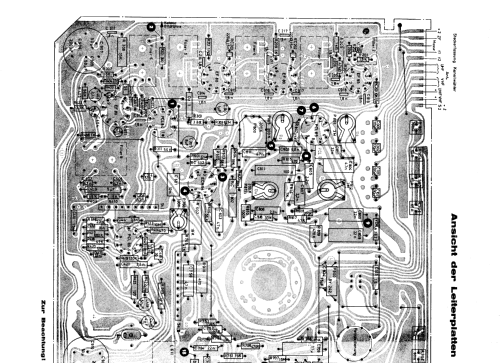

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• ECC85 ECH81 EF85 EAA91 EM84 ECL86 ECL86 PCC88 PCF86 PC88 PC86 EF85 EF80 EF80 PCL84 ECH84 PCL85 PCF802 PL500 PY88 DY86 EF80 PCL86 AW59-90

• Number of Transistors

• Semiconductors
• BY242 E50C5 E75C5 OA70 OA79 OA79 Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

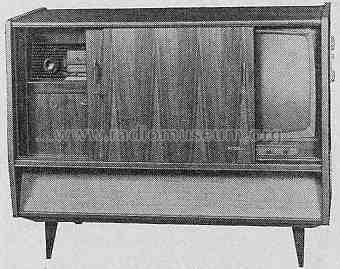

• Model: Cortina 63 Ch= J611K TV-Ch=1523 Super-Automatic - Kuba Kuba-Imperial, G.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1200 x 970 x 470 mm / 47.2 x 38.2 x 18.5 inch

• Notes

• First seven tubes and last two semiconductors belong to Radio-Chassis J611K

  Fernseh-Chassis = 1523 Super-Automatic.
  Rundfunk-Chassis = J611K.
  Phono-Chassis = Imperial Miracord 16

  VHF Tuner Typ Z10
  UHF tuner Typ DT30

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Price in first year of sale
• 1,898.00 DM

• Source of data
• Handbuch VDRG 1962/1963 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
