- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 116161

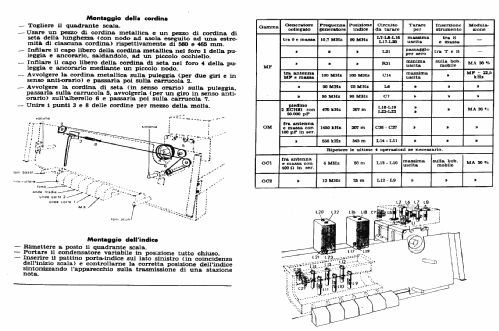

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 669 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 360 x 260 mm / 22.4 x 14.2 x 10.2 inch
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
