- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 325489
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 100-270 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 860-1 - Phonola SA, FIMI; Saronno VA
- Notes
-
Controllo di tono. Ingresso per giradischi.

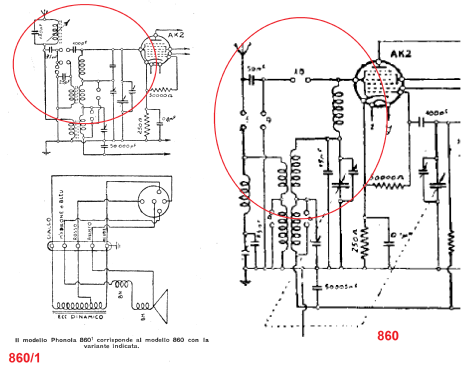

Alcuni schemi indicano la AK2, non intercambiabile con la AK1Si tratta del circuito Ch=860 del modello 863 con una variante sull'Alta Frequenza, posta a confronto nello schema allegato.
- Mentioned in

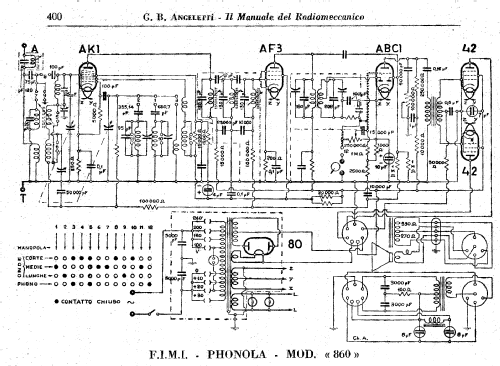

- -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945)
