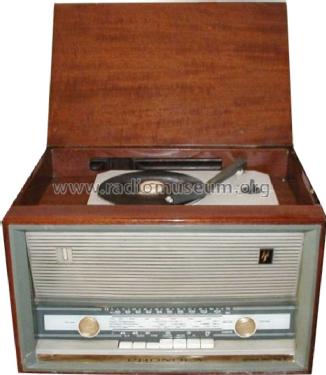

Gran Derby 2 696R (RFV-696)

Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1061809) Radio

Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1061810) Radio
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1061735) Radio Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841240) Radio
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841243) Radio Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841245) Radio
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841247) Radio Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841238) Radio
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 841239) Radio Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1242418) Radio
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1242419) Radio Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1242420) Radio
Use red slider bar for more.
Gran Derby 2 696R ; Phonola SA, FIMI; (ID = 1061735) Radio
Phonola SA, FIMI;: Gran Derby 2 696R [Radio] ID = 1061735 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gran Derby 2 696R (RFV-696), Phonola SA, FIMI; Saronno (VA)

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84 Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker 2 Loudspeakers
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: Gran Derby 2 696R - Phonola SA, FIMI; Saronno VA
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 435 x 275 x 335 mm / 17.1 x 10.8 x 13.2 inch
Notes Radiofonografo AM/FM - tasto per ascolto TV.
Commutatore di gamma a tastiera.
Regolatore di tonalità: separato per bassi e acuti - a tasti.
Testina rivelatrice: a cristallo.
Price in first year of sale 62,900.00 ITL
Collectors' prices
Mentioned in Catalogo ANIE 1965-66

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
