• Year
  • 1960 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 175602

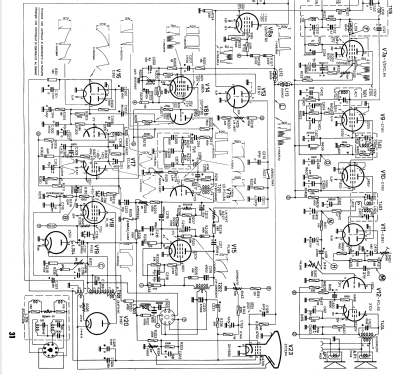

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 23
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-270 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: TV-2127 - Phonola SA, FIMI; Saronno VA
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Cinescopio 21" 110° tipo sferico-elettrostatico.
    VHF (S17).
    FI 4 stadi 40 MHz sistema intercarrier.
    Circuiti deflessione stalilizzati.
  • Literature/Schematics (1)
  • -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
