TV-2129

TV-2129; Phonola SA, FIMI; (ID = 772346) Television

TV-2129; Phonola SA, FIMI; (ID = 772347) Television

TV-2129; Phonola SA, FIMI; (ID = 772348) Television

TV-2129; Phonola SA, FIMI; (ID = 772350) Television

TV-2129; Phonola SA, FIMI; (ID = 772351) Television
Use red slider bar for more.
TV-2129; Phonola SA, FIMI; (ID = 772346) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1960 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PCC88 PCF80 EF80 EF80 EF80 EF80 PCL84 PCF80 EF80 EF80 EB91 PCL82 EB91 6BE6 PL84 EB91 ECL80 PL36 PY81 PY82 PY82 DY87 21DEP4
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: TV-2129 - Phonola SA, FIMI; Saronno VA
Shape Tablemodel, with any shape - general.
Notes Cinescopio 21" 110° tipo sferico-elettrostatico.
VHF (S17).
FI 4 stadi 40 MHz sistema intercarrier.
Circuiti deflessione stabilizzati.

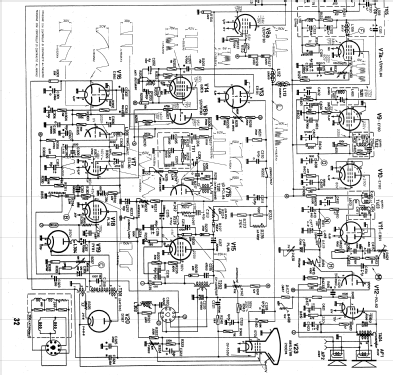

Literature/Schematics (1) -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
