TV-2131P

TV-2131P; Phonola SA, FIMI; (ID = 774285) Television

TV-2131P; Phonola SA, FIMI; (ID = 774286) Television

TV-2131P; Phonola SA, FIMI; (ID = 774288) Television

TV-2131P; Phonola SA, FIMI; (ID = 774289) Television

TV-2131P; Phonola SA, FIMI; (ID = 774291) Television

TV-2131P; Phonola SA, FIMI; (ID = 774293) Television
Use red slider bar for more.
TV-2131P; Phonola SA, FIMI; (ID = 774285) Television
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Phonola SA, FIMI; Saronno (VA)
Year: 1961 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 21: PCC88 PCF80 EF80 EF80 EF80 EF80 PCL84 PCF80 EF80 EF80 EAA91 PCL82 EB91 6BE6 PL84 EB91 PCF80 PL36 PY81 DY87 AW53-88
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100-270 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: TV-2131P - Phonola SA, FIMI; Saronno VA
Shape Tablemodel, with any shape - general.
Notes Cinescopio 21" 110° tipo sferico-elettrostatico.
VHF (S18).
FI 4 stadi 40 MHZ sistema intercarrier.
Comandi laterali.

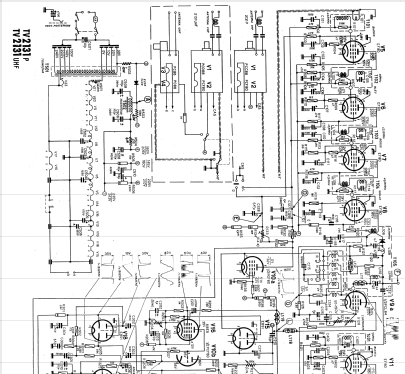

Literature/Schematics (1) -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)

Model page created by Eduard Abfalterer. See "Data change" for further contributors.
