• Country
• Germany

• Manufacturer / Brand
• QUELLE GmbH (Universum); Fürth und Nürnberg

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129164

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

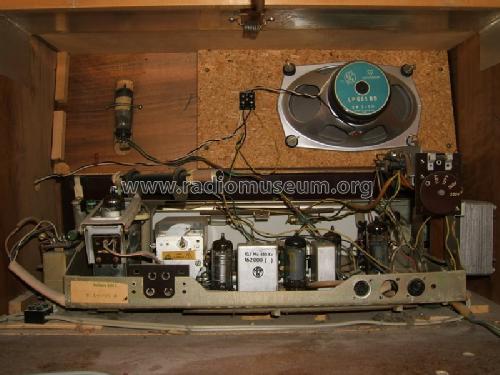

• Model: Musikschrank T56 Art. Nr. 03634 / 03635 - QUELLE GmbH Universum; Fürth

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 930 x 700 x 390 mm / 36.6 x 27.6 x 15.4 inch

• Notes

• Rundfunk-Chassis = Saalburg 5370C
  Phono-Chassis = Philips AG1025 bzw. AG1035

  Das Modell gibt es in zwei Ausführungen:

  • Art. Nr. 03634 - Gehäuse dunkel
  • Art. Nr. 03635 - Gehäuse hell

  Das Bild in der Serviceanleitung zeigt ein horizontal eingebautes mag. Auge.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Holger Specht. See "Data change" for further contributors.

• Other Models

• Here you find 1078 models, 902 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from QUELLE GmbH (Universum); Fürth und Nürnberg
