• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 68879

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• CK1 CF3 CBC1 CL2 4662 CL2 CY2

• Main principle
• Superheterodyne (common); ZF/IF 145 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 120-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

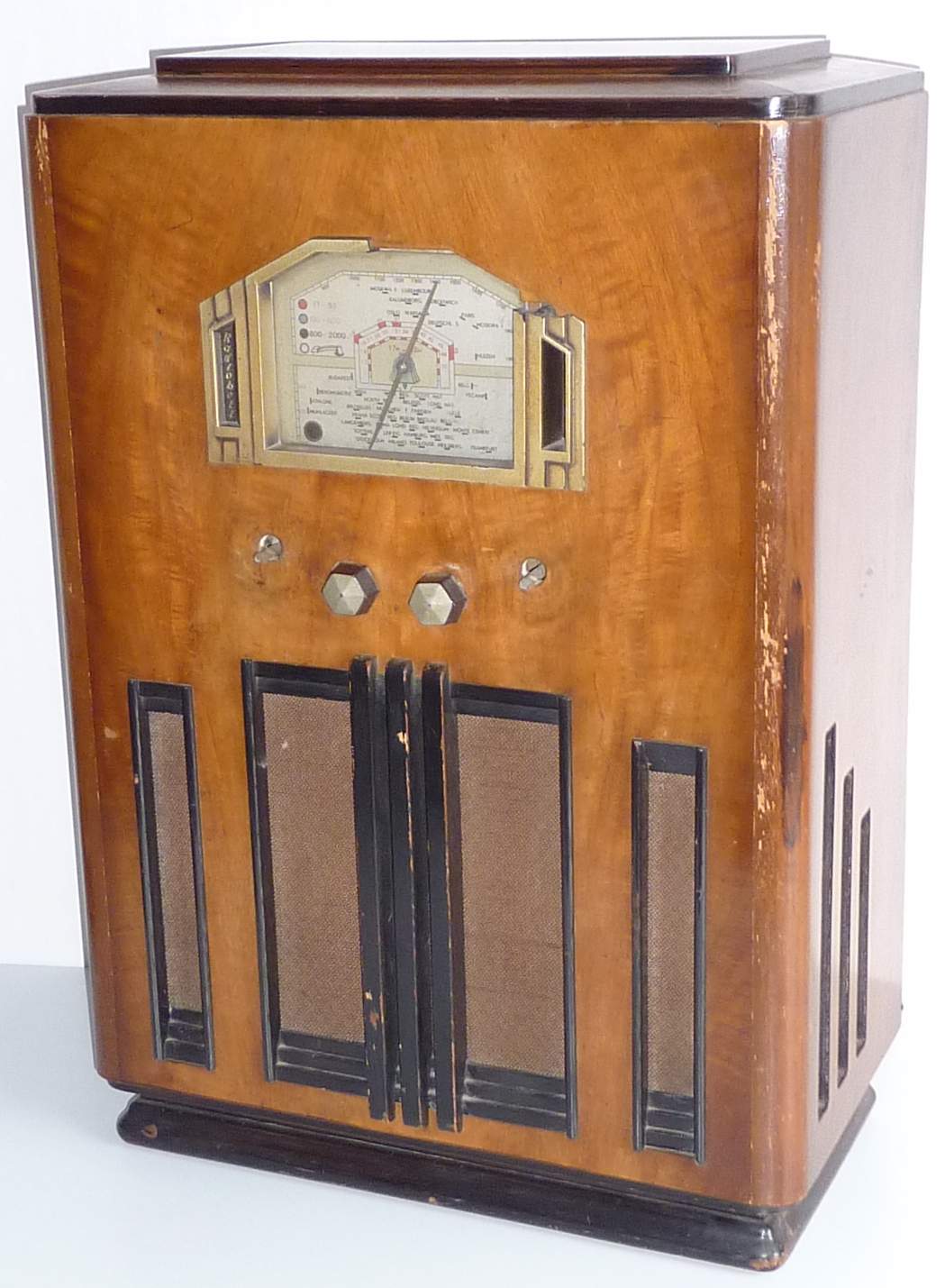

• Model: Radiobell 636 - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 460 x 670 x 260 mm / 18.1 x 26.4 x 10.2 inch

• Notes
• Codex J.V. AS5735. Neon indicator 4662 A27.
  Schakelingen v. Dijck: 225 Hfl.
  V. Dijck erroneously states tube CLC1 (in stead of CBC1).

• Price in first year of sale
• 2,975.00 BFR

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Technisch- Commercieel - Radio Vademecum Staleman ("Radio Schakelingen" (J.G.R. van Dijck))
