RA453A

RA453A; Radiola marque (ID = 403335) Radio

RA453A; Radiola marque (ID = 403336) Radio

RA453A; Radiola marque (ID = 2169820) Radio
RA453A; Radiola marque (ID = 2173536) Radio RA453A; Radiola marque (ID = 2173537) Radio
RA453A; Radiola marque (ID = 403334) Radio RA453A; Radiola marque (ID = 2173502) Radio
Use red slider bar for more.
RA453A; Radiola marque (ID = 2173536) Radio
Radiola marque: RA453A [Radio] ID = 2173536 600x384
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA453A, Radiola (marque):
ebay.fr #152697291354 seller aumade

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner

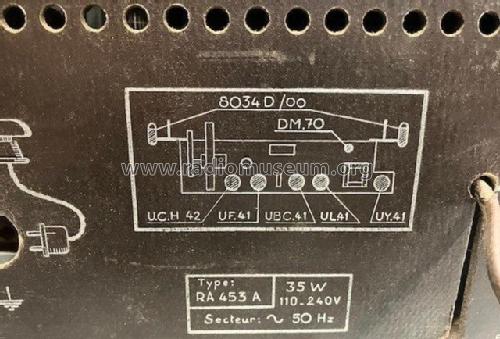

Valves / Tubes 6: UCH42 UF41 UBC41 UL41 DM70 UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: RA453A - Radiola marque

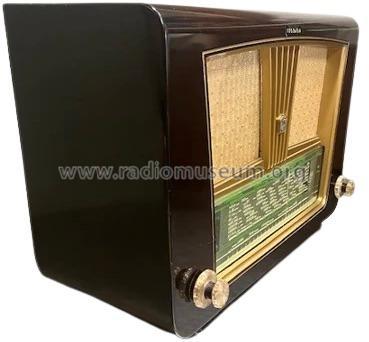

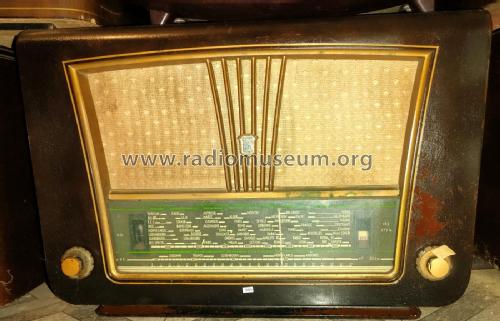

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 320 x 200 mm / 18.5 x 12.6 x 7.9 inch
Notes

4 gammes d'ondes : GO de 1100 à 1950 m, PO de 185 à 572 m, OC de 16.5 à 51 m et BE (bande étalée) de 47 à 50.8 m. Cadre ferroxcube orientable et plaque antenne OC incorporés. HP type 2040X (Z = 5 ohms).

Coffret matière moulée.

Équivalent au Philips BF431A.

Malgré le jeu de lampes série U (tous courants) ce modèle ne fonctionne que sur secteur alternatif 50 périodes.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Source of data -- Collector info (Sammler)

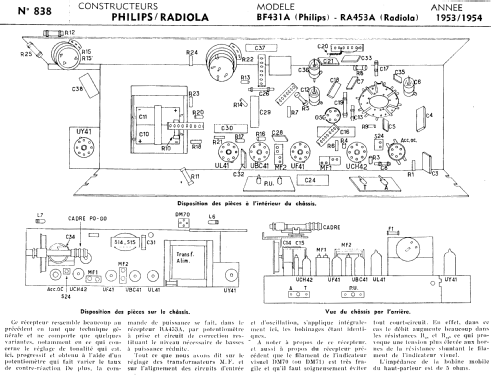

Mentioned in -- Original-techn. papers. (Radiola Service RM/PM 24.08.53)

Model page created by John Koster. See "Data change" for further contributors.
