Radiola marque: RA83A /00 /01 [Radio] ID = 100472 933x686
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA83A /00 /01, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 CBL6 CY2
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA83A /00 /01 - Radiola marque

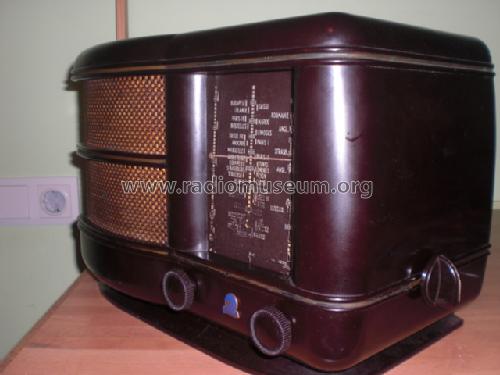

Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 350 x 230 x 200 mm / 13.8 x 9.1 x 7.9 inch
Notes

3 gammes d'ondes: GO 1150 à 2000 m, PO 190 à 570 m, OC 16 à 51 m.

Équivalent au Philips BF381A.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

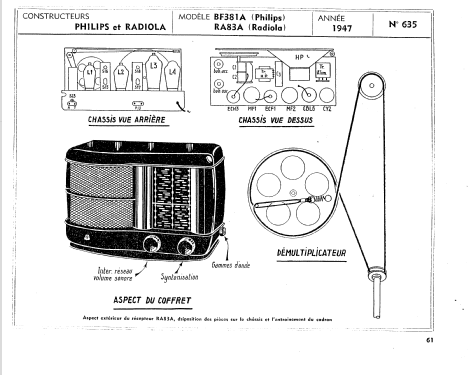

Literature/Schematics (1) Le grand livre de la TSF (Doctsf Ref. 2725)

Model page created by Patrice Zeissloff. See "Data change" for further contributors.
