RA438A

RA438A; Radiola marque (ID = 1875150) Radio

RA438A; Radiola marque (ID = 1875151) Radio

RA438A; Radiola marque (ID = 1875148) Radio

RA438A; Radiola marque (ID = 1875149) Radio

RA438A; Radiola marque (ID = 1875147) Radio

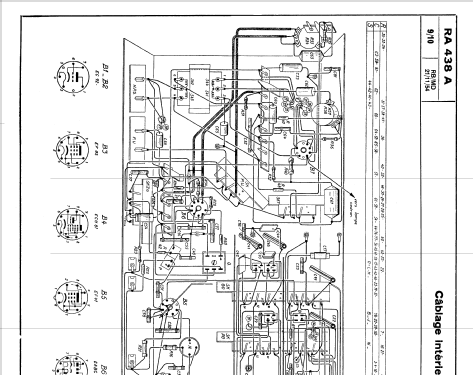

RA438A; Radiola marque (ID = 1875152) Radio

RA438A; Radiola marque (ID = 1875153) Radio

RA438A; Radiola marque (ID = 1875154) Radio

RA438A; Radiola marque (ID = 1875156) Radio

RA438A; Radiola marque (ID = 1875157) Radio

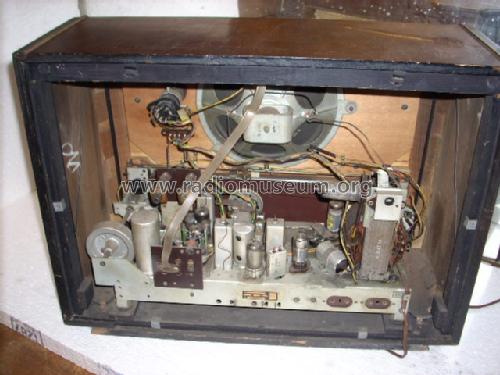

RA438A; Radiola marque (ID = 356807) Radio RA438A; Radiola marque (ID = 356808) Radio
Use red slider bar for more.
RA438A; Radiola marque (ID = 356807) Radio
Radiola marque: RA438A [Radio] ID = 356807 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA438A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 EF85 ECH81 EM34 EF41 EABC80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 455 /10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: RA438A - Radiola marque
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 540 x 390 x 240 mm / 21.3 x 15.4 x 9.4 inch
Notes

Antennenumschalter im LS-Feld

Einbaumöglichkeit für Heim-Rufgerät (Interphone) AF 7800.

Net weight (2.2 lb = 1 kg) 6.8 kg / 14 lb 15.6 oz (14.978 lb)
Source of data Le grand livre de la TSF

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.
