540GW Type 1940

540GW; Radione RADIO (ID = 289984) Radio

540GW; Radione RADIO (ID = 22101) Radio
540GW; Radione RADIO (ID = 429777) Radio 540GW; Radione RADIO (ID = 266816) Radio
540GW; Radione RADIO (ID = 266813) Radio 540GW; Radione RADIO (ID = 2280) Radio
540GW; Radione RADIO (ID = 266810) Radio 540GW; Radione RADIO (ID = 266812) Radio
540GW; Radione RADIO (ID = 266815) Radio 540GW; Radione RADIO (ID = 1079209) Radio
540GW; Radione RADIO (ID = 1079210) Radio 540GW; Radione RADIO (ID = 1079211) Radio
Use red slider bar for more.
540GW; Radione RADIO (ID = 429777) Radio

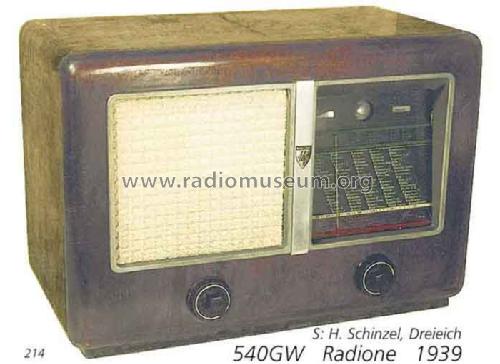

Radione RADIO: 540GW [Radio] ID = 429777 627x447
Select picture or schematic to display from thumbnails on the right and click for download.
For model 540GW Type 1940, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1939–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 CL4 CY1 EFM11 U1230-4
Main principle Super-Heterodyne (Super in general); ZF/IF 469,5 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 105-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 540GW [Type 1940] - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 325 x 260 mm / 18.5 x 12.8 x 10.2 inch
Notes Variable Bandbreite
Net weight (2.2 lb = 1 kg) 9.7 kg / 21 lb 5.9 oz (21.366 lb)
Price in first year of sale 270.00 RM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Handbuch WDRG 1939 / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
