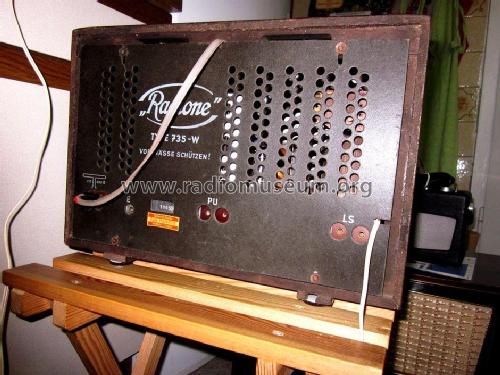

735W; Radione RADIO (ID = 1835569) Radio 735W; Radione RADIO (ID = 1835570) Radio
735W; Radione RADIO (ID = 1835571) Radio 735W; Radione RADIO (ID = 1835572) Radio
Use red slider bar for more.
735W; Radione RADIO (ID = 25956) Radio
Radione RADIO: 735W [Radio] ID = 25956 883x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 735W, Radione (RADIO Nikolaus Eltz); Wien

Country:  Austria
Manufacturer / Brand:  Radione (RADIO Nikolaus Eltz); Wien
Brand

Eltz
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 735W - Radione RADIO Nikolaus Eltz;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 268 x 190 mm / 15.4 x 10.6 x 7.5 inch
Net weight (2.2 lb = 1 kg) 6.2 kg / 13 lb 10.5 oz (13.656 lb)
Price in first year of sale 1'550.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Unterlagen E.Erb
